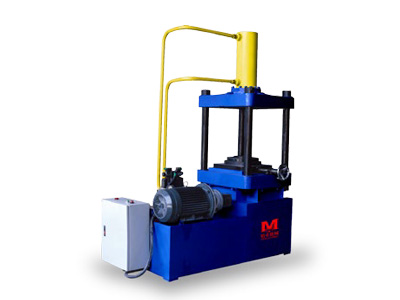

Die Presser

This machine adopts hydraulic drive. It is mainly used for the ejection and removal of the residual in the dies after the extrusion completed.

Service line

400-1088-778 / 0757-85588578

Main Features:

Stable operation, high nominal pressure, small in size, and flexible control and adjustment.
The residual material of different specifications and sectional dies can be pushed out by changing the different sizes of modules and punching needles.

Main Technical Parameters

Mode	JYRD300	JYRD400	JYRD600	JYRD1200
Type	Vertical	Vertical	Vertical	Horizontal
Nominal Pressure	300 kN	400 kN	600 kN	1200 kN
Diameter of Die	≤ Φ350 mm	Φ350 ～ Φ450 mm	Φ450 ～ Φ600 mm	Φ550 ～ Φ1250 mm
Piercing Mandrel Size	≤ Φ30 mm	Φ25 ～ Φ40 mm	Φ35 ～ Φ50 mm	Φ60 ～ Φ100mm
Systemic Operating Pressure	16 MPa	16 MPa	20 MPa	25 MPa
Operational Ability	120 pcs/hour	80 pcs/hour	60 pcs/hour	20 件 pcs/hour
Total Power	7.5 kW	11 kW	15 kW	25 kW
Voltage	380 V	380 V	380 V	380 V
Dimension (LWH)	1400 × 800 × 2200	1600 × 1000 × 2300	1600 × 1200 × 2500	2200 × 2200 × 3000
Weight	1200 kg Approx.	1500 kg Aprox.	3000 kg Aprox.	15000 kg Approx.

NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
